Power: 2600W
Steam Drang: 8KG
Steam Cleaning Time: without time limited
Operation Model: manual control or foot control
Outer Dimension: 50×40×33 CM
National patent No.: 201420059818.6 201410045969.0
Designed the boiler separate from water box,
supply sustained pressure,automatic add water
Advantageous features:
1.More Elegant: senior technology, elegant design, stainless steel machine of grease-proof.
2.More Safety: boiler volume and pressure ratio is far lower country safety standard.
3.More Efficiency: supply sustainable and stable pressure 8kg, don't turn off the machine and
reduced pressure to add water while working.
4.More Energy saving: designed new-type boiler, greatly shorten preheating time, keep low
energy supply pressure.
5.More Simple: add any hardness of water,can choose two operation modes: foot control and
hand-held mode.
6.More professional: rigorous production team,top-notch development team,obtain many
National Invention Patents.

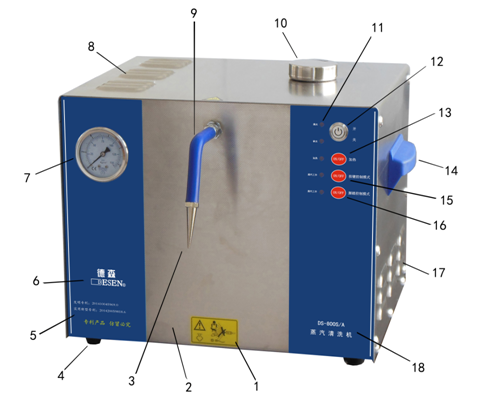

Schematic Diagram:
1-Warning Sign 2-Maching Enclosure 3-Steam Nozzle
4-Machine Foot 5-Product Patent No. 6-Product Logo
7-Pressure Gauge 8-Radiating Hole 9-Steam Pipe
10-Manual Filler Neck 11-Indicator Light 12-Main Switch
13-Boiler Heating Switch 14-Machine Handle 15-Steam Key Switch
16-Steam Foot Switch 17-Side RadiatingHole 18-Machine Model
Operation Instructions:
1. Turn on the machine main switch on the panel.
2. Press the button "Heating" to start heating after the water tank is full of water, and the heating
indicator light display red, shows it's heating.Press the button once again to stop heating.
3. When the pressure reaches the internal set pressure,the heating indicator light will become green,
indicating that heating is completed. When internal pressure drop,the machine can automatic start
to heating.
4. Press the button"Hand"once to switch into the hand control mode, and the hand control indicator
light will be ON . Press the button "Hand" again, then steam can be sprayed for cleaning. If steam
spraying needs to be stopped , press the button "Hand" again . (it applied to cleaning all the time.)
5. Press the button "Foot" once to switch into the foot control mode, and the foot control indicator
light will be ON . In this case, steam can be sprayed only by stepping on the pedal, and cleaning
can be stopped only by releasing the pedal.(it applied to discontinuous cleaning)
6. When the Heating green lamp flashes,it is indicated that the heater is short of water,and dry burning
protection is needed.Stop the cleaner to check whether the water inlet pipe is smooth.Promptly clean
the water inlet pipe in case of any clogging.
7. In case of water shortage in the water tank,the water shortage indicator light will flash,and the alarm
sound "beep-beep" will be uttered to remind the operator to fill water. When the water tank is full of
water, the fullness indicator light will be ON, and alarm will be uttered for 1s.
